01
Live or scheduled data
Connect the board to Wi-Fi for real-time vehicle positions, or use it offline to replay schedule data from memory.
Fast replay mode shows a full day of service in about four minutes.

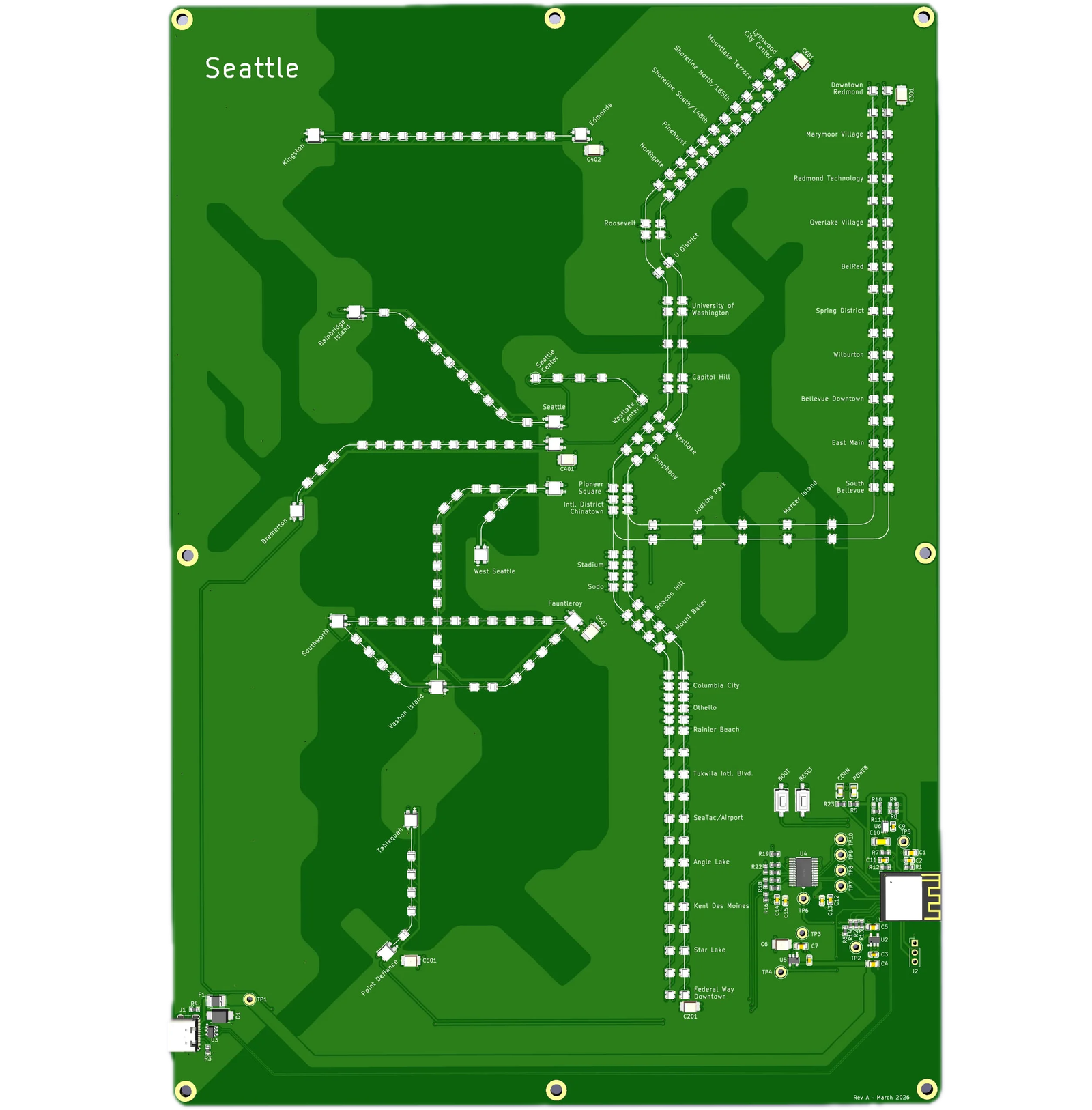

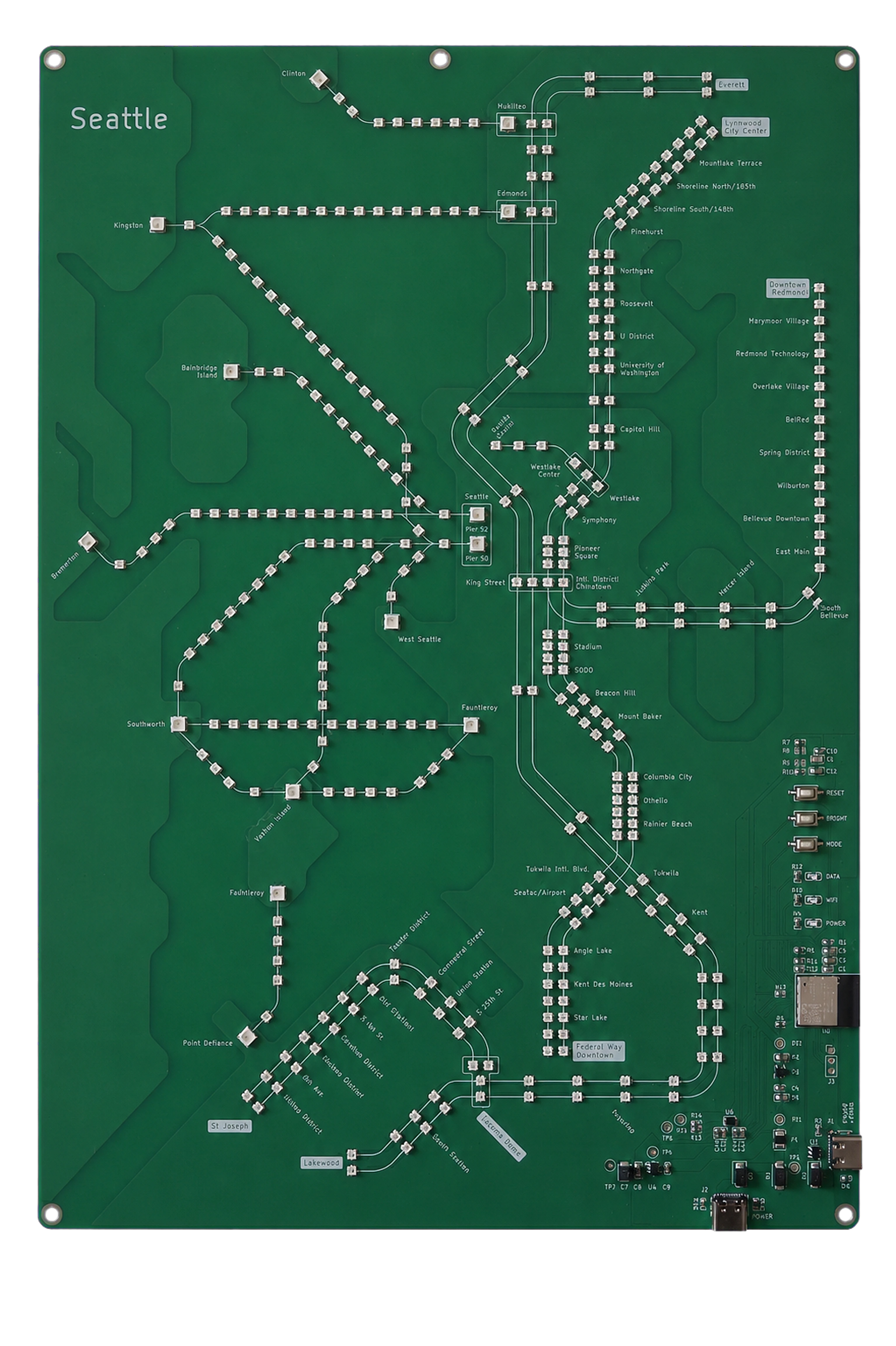

A circuit board map of Seattle transit

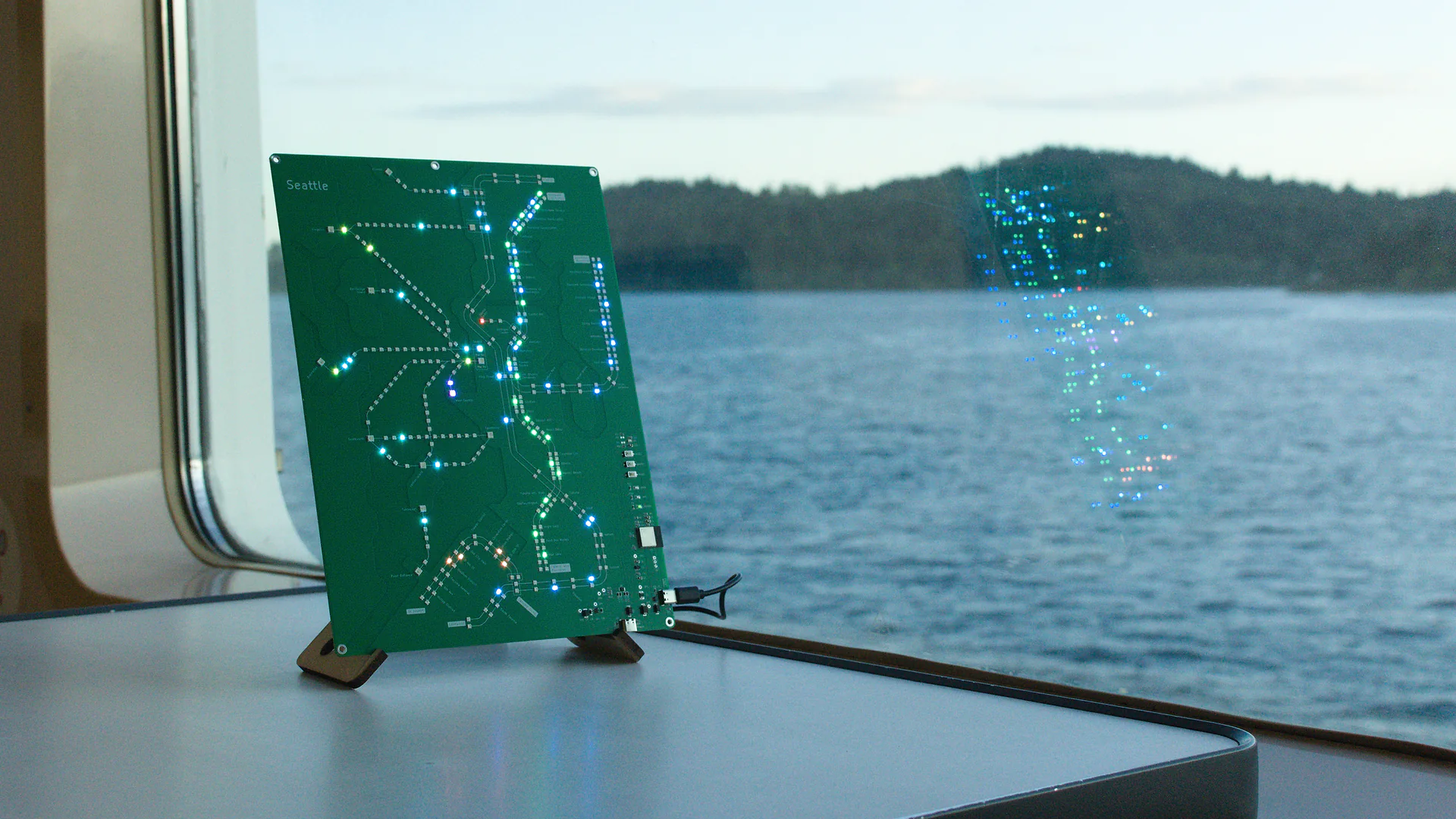

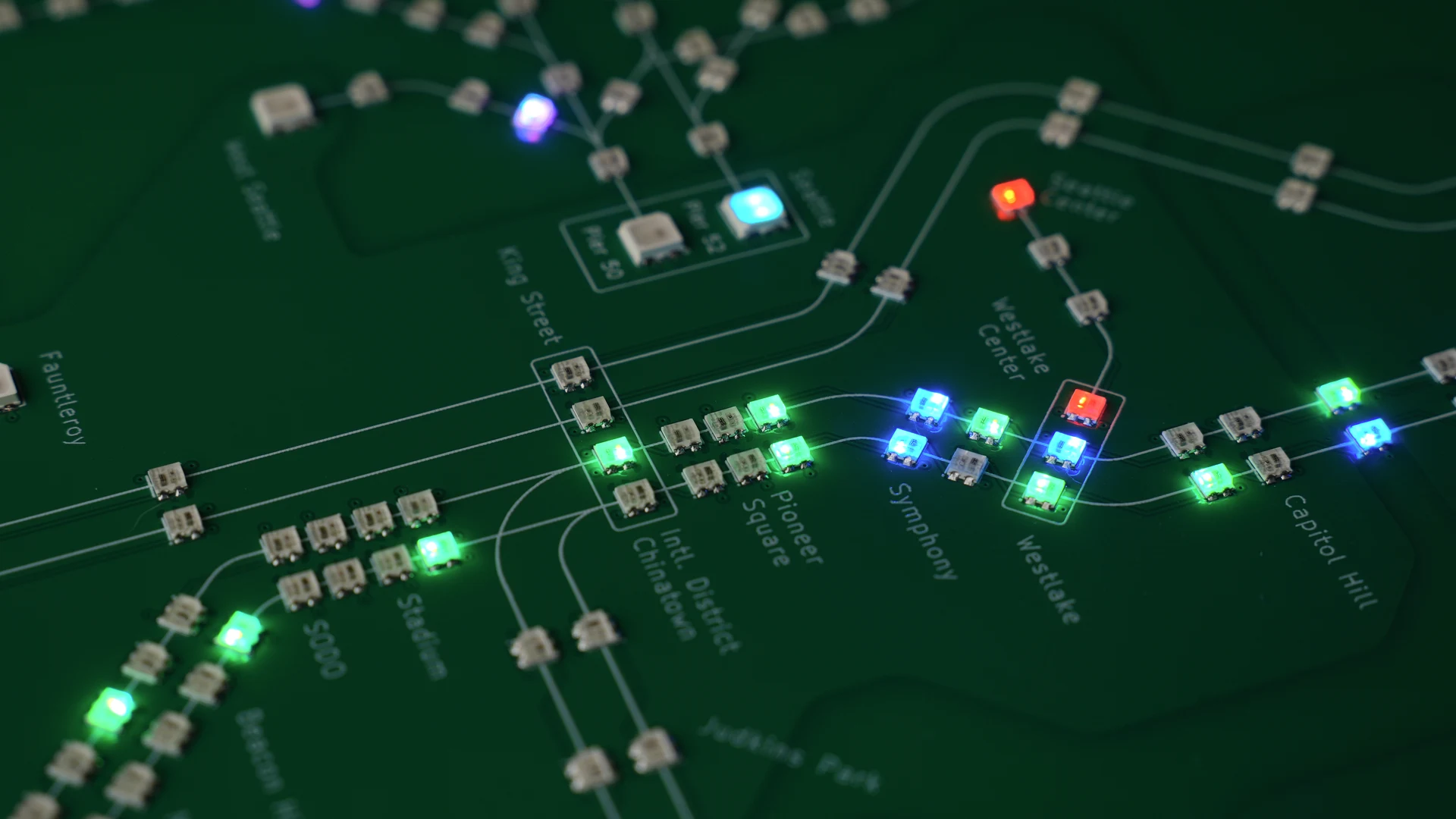

Live rail and ferry positions with 383 colorful LEDs
Interested in getting one?
You can pre-order a board for late September shipping, or leave your email for occasional project updates.
Designed in Seattle
Decorated with a hand-drawn regional transit map, and the Puget Sound coastline etched into copper.
Rail06 services
- Link 1 Line — Lynnwood to Federal Way

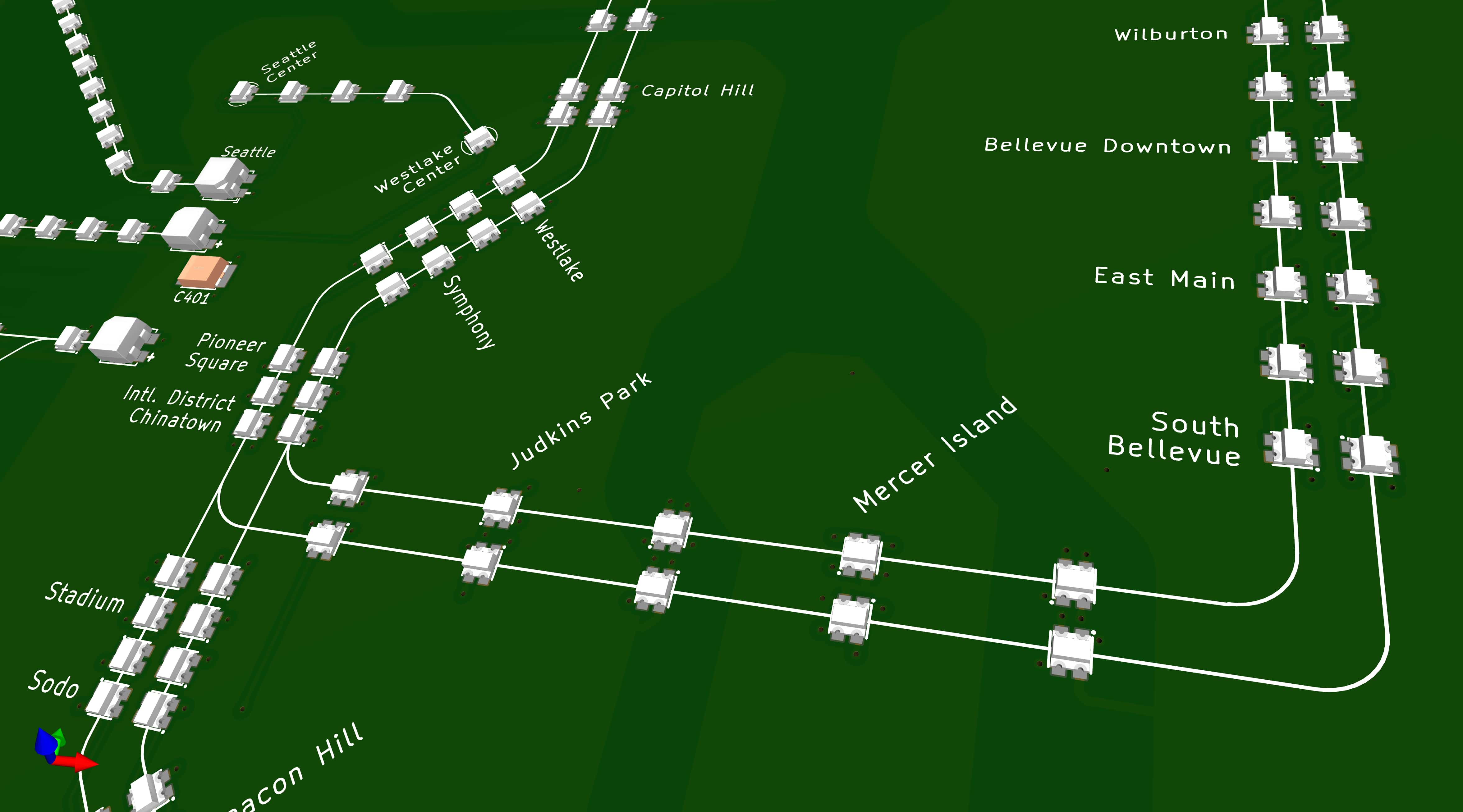

- Link 2 Line — Seattle to Redmond
- Link T Line — Tacoma Dome to St. Joseph
- Sounder N Line — Everett to Seattle

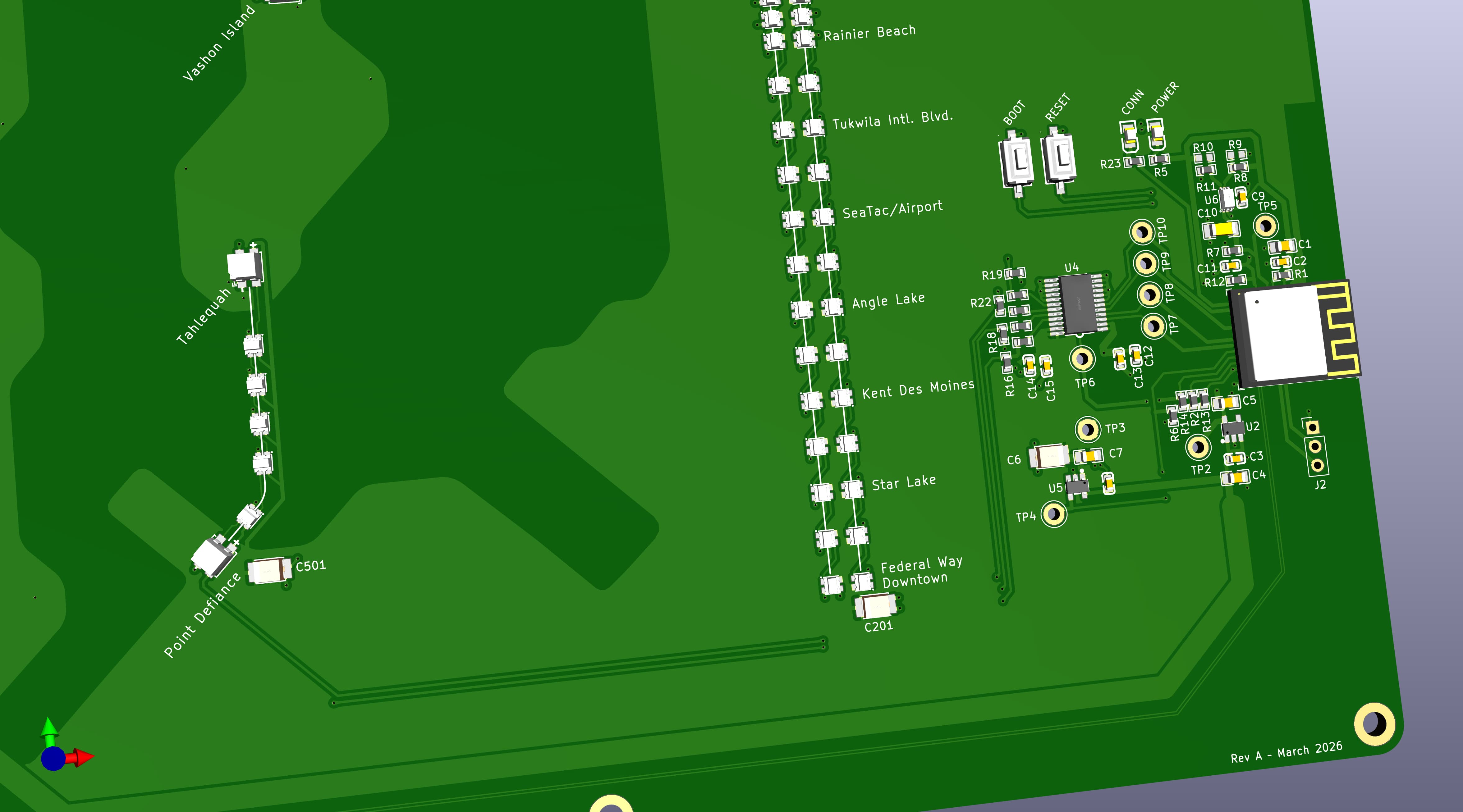

- Sounder S Line — Lakewood to Seattle
- Seattle Monorail (schedule data only)

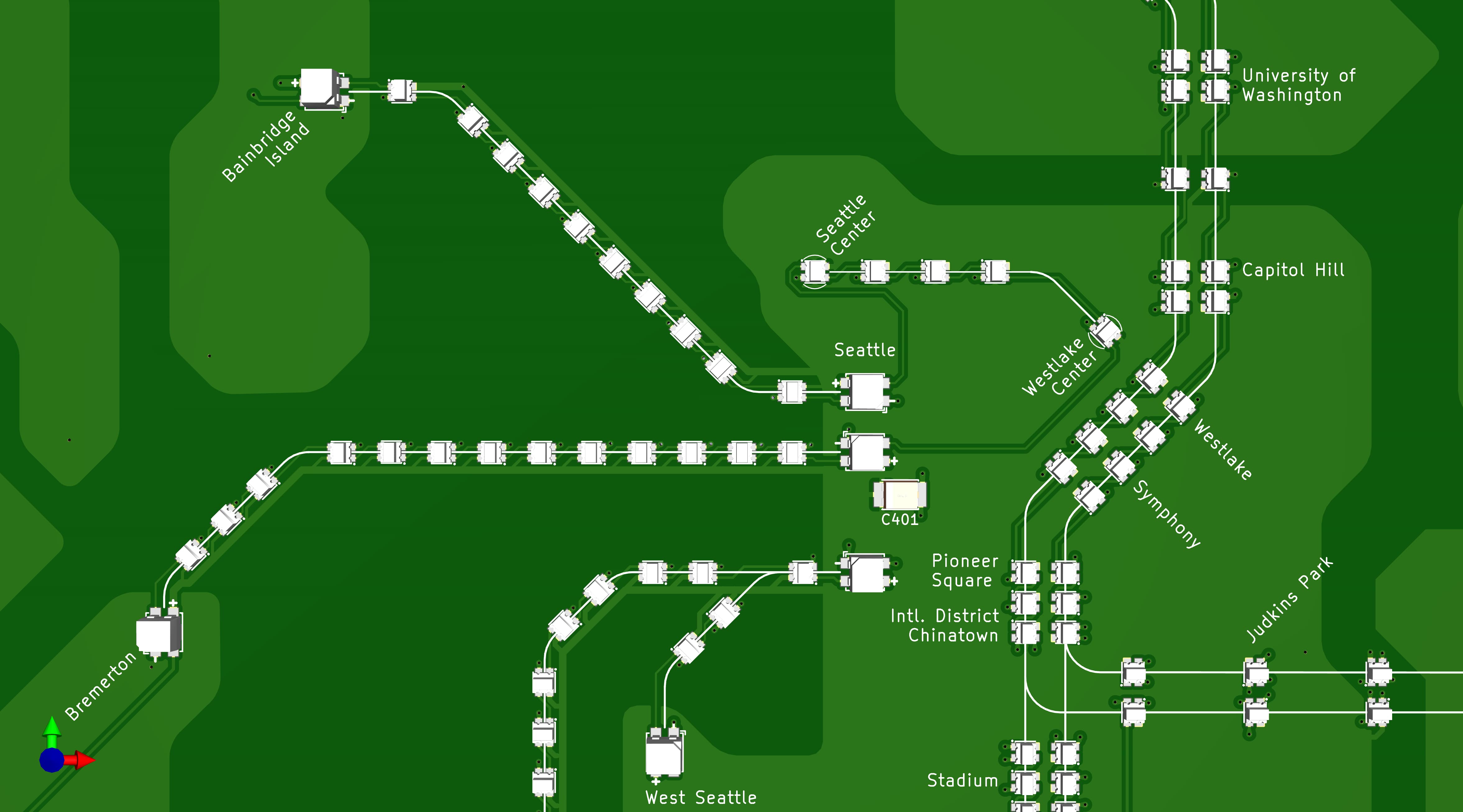

Washington State Ferries08 routes
- Seattle / Bainbridge Island
- Seattle / Bremerton

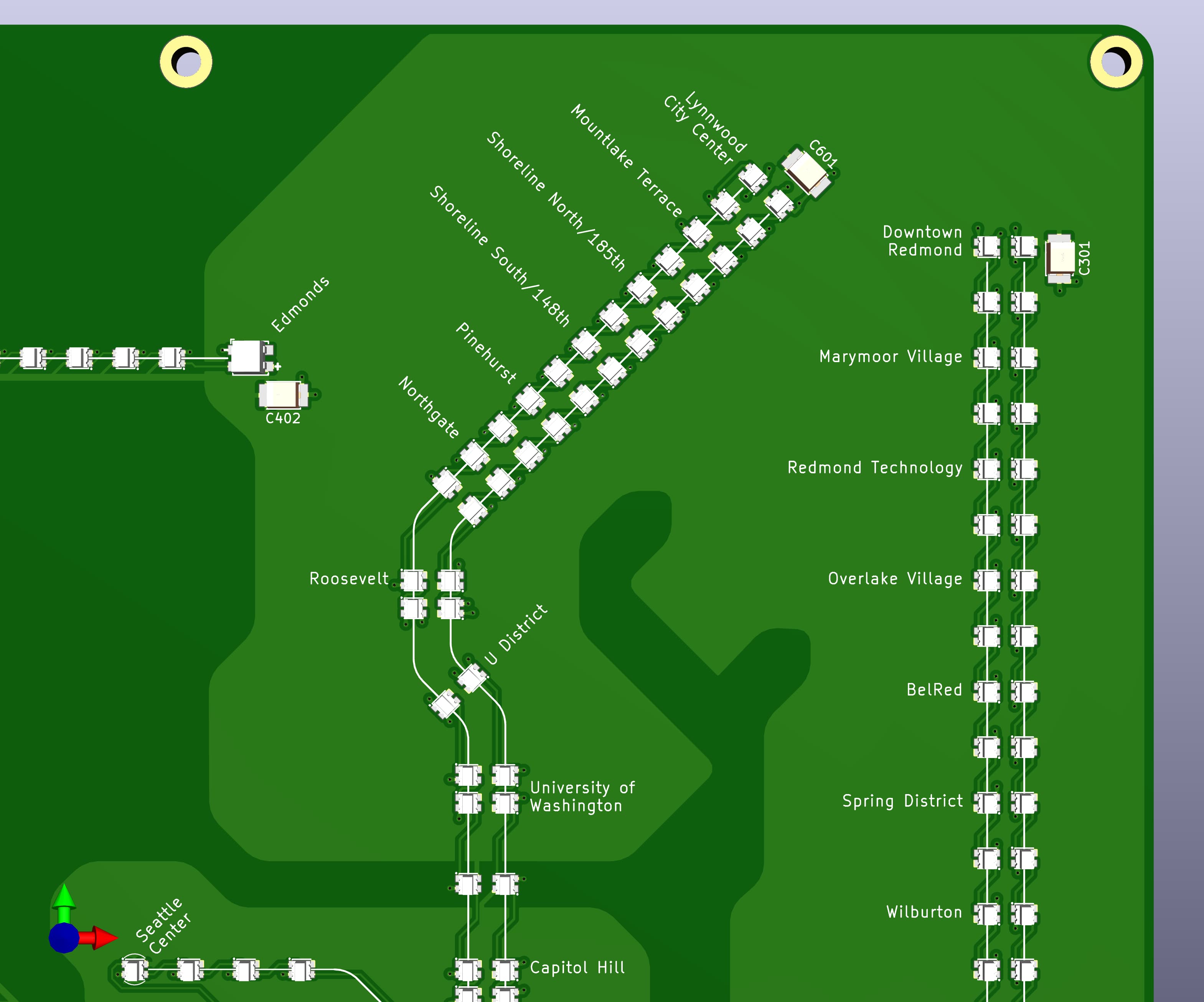

- Edmonds / Kingston
- Mukilteo / Clinton
- Fauntleroy / Vashon Island
- Fauntleroy / Southworth
- Vashon Island / Southworth
- Point Defiance / Tahlequah
Passenger ferries05 routes
- King County Water Taxi — West Seattle and Vashon Island
- Kitsap Fast Ferry — Bremerton, Kingston and Southworth
02
Ready to display

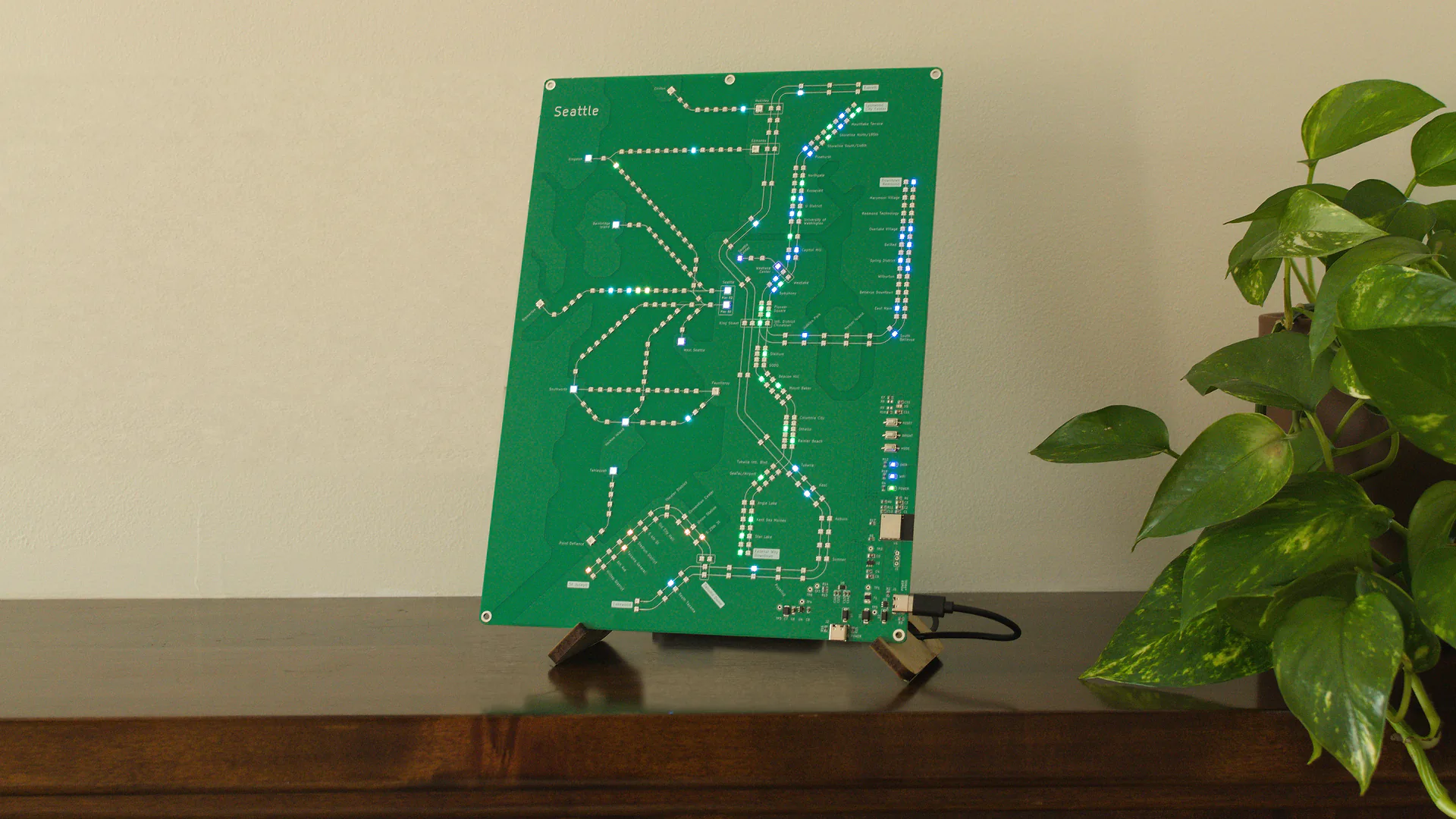

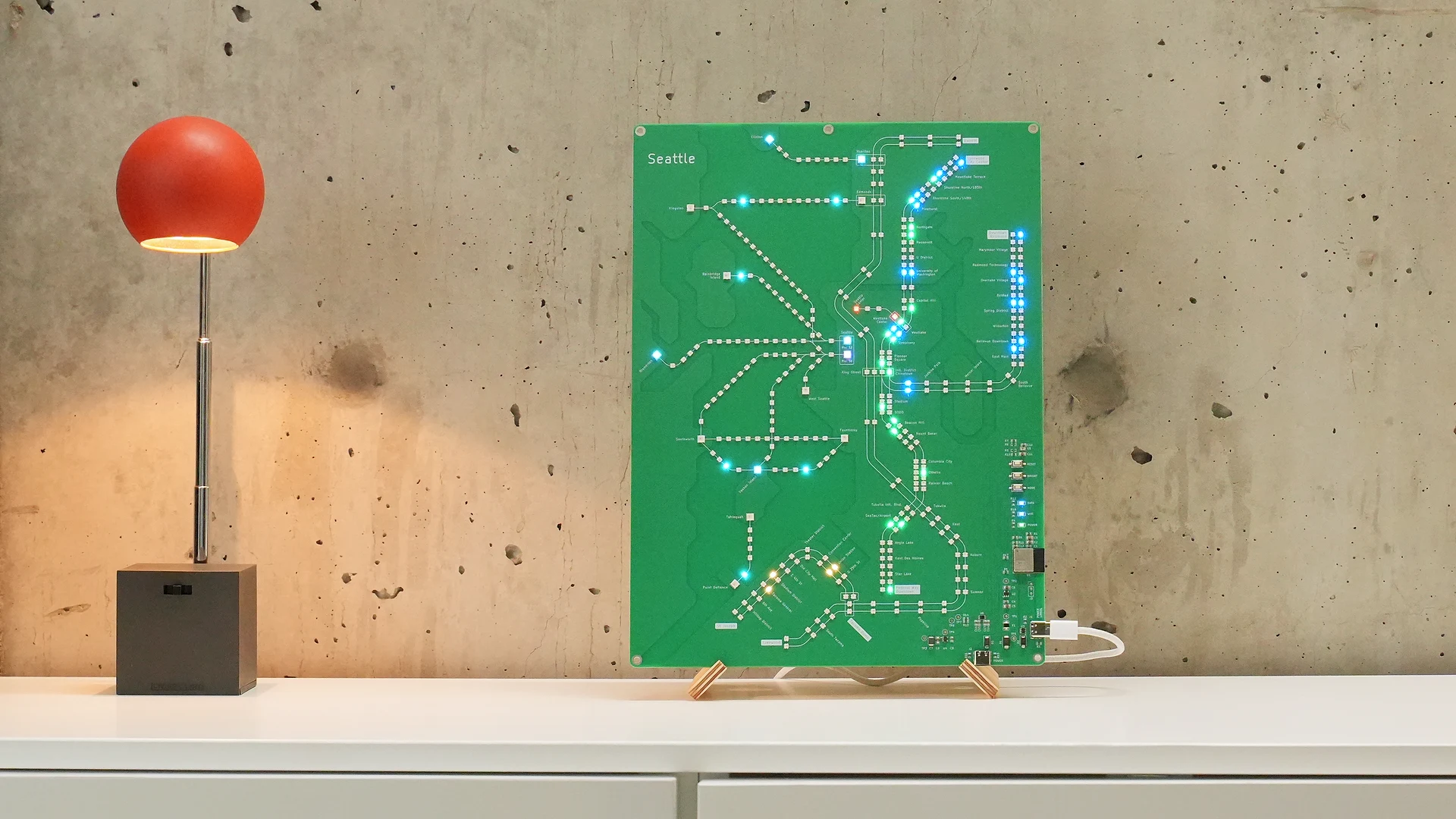

USB-C power inputs on two edges support shelf and wall placement. Finished boards ship with a custom, laser-cut shelf stand.
03
Adjustable brightness
An onboard light sensor can adjust the display for the room, or use the brightness button for manual control.

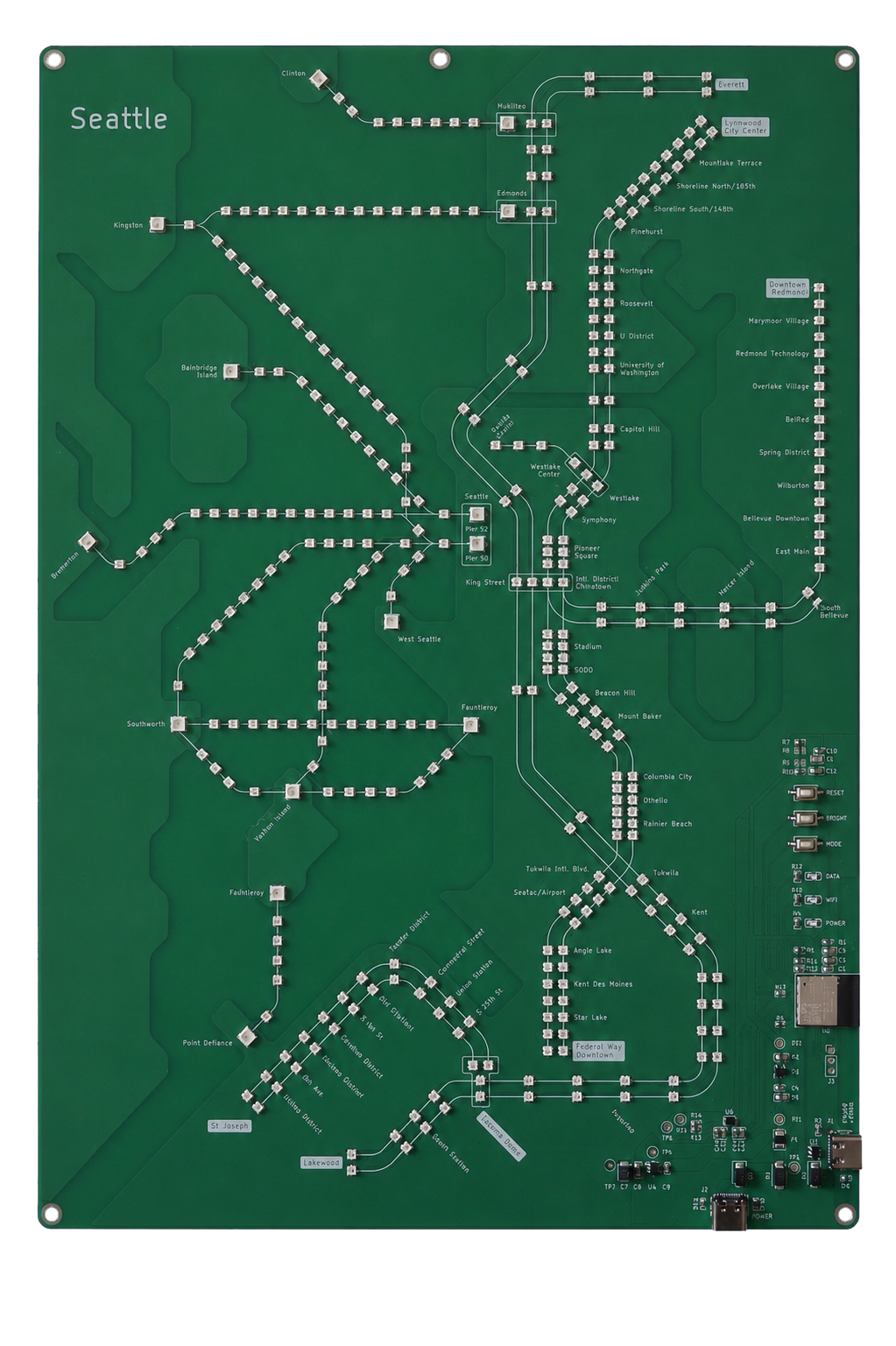

Tech specs
- Display
- 383 WS2812B addressable LEDs
- Dimensions
- 220 × 300 mm (about 9 x 12 in)
- Connection
- 2.4 GHz Wi-Fi
- Power
- 5V USB-C / input on either edge
- Microcontroller
- ESP32-C3-MINI-1
- Base material
- 1.6mm FR-4
- Copper layers
- 2
- Open hardware
- The schematic is published on GitHub, and the board's ESP32 microcontroller can be flashed with custom firmware
Note on live data
The board comes ready to connect to the Seattle Transit Live data service for real-time vehicle positions and firmware updates. Access to this optional service is included in the board price.
Live updates depend on public transit-agency feeds and the continued operation of the Seattle Transit Live service. If live data is interrupted, the board can continue displaying its stored Spring 2026 schedule data for the life of the board.
