Seattle Transit Live Map

A circuit board map that shows regional transit data with 383 colorful LEDs

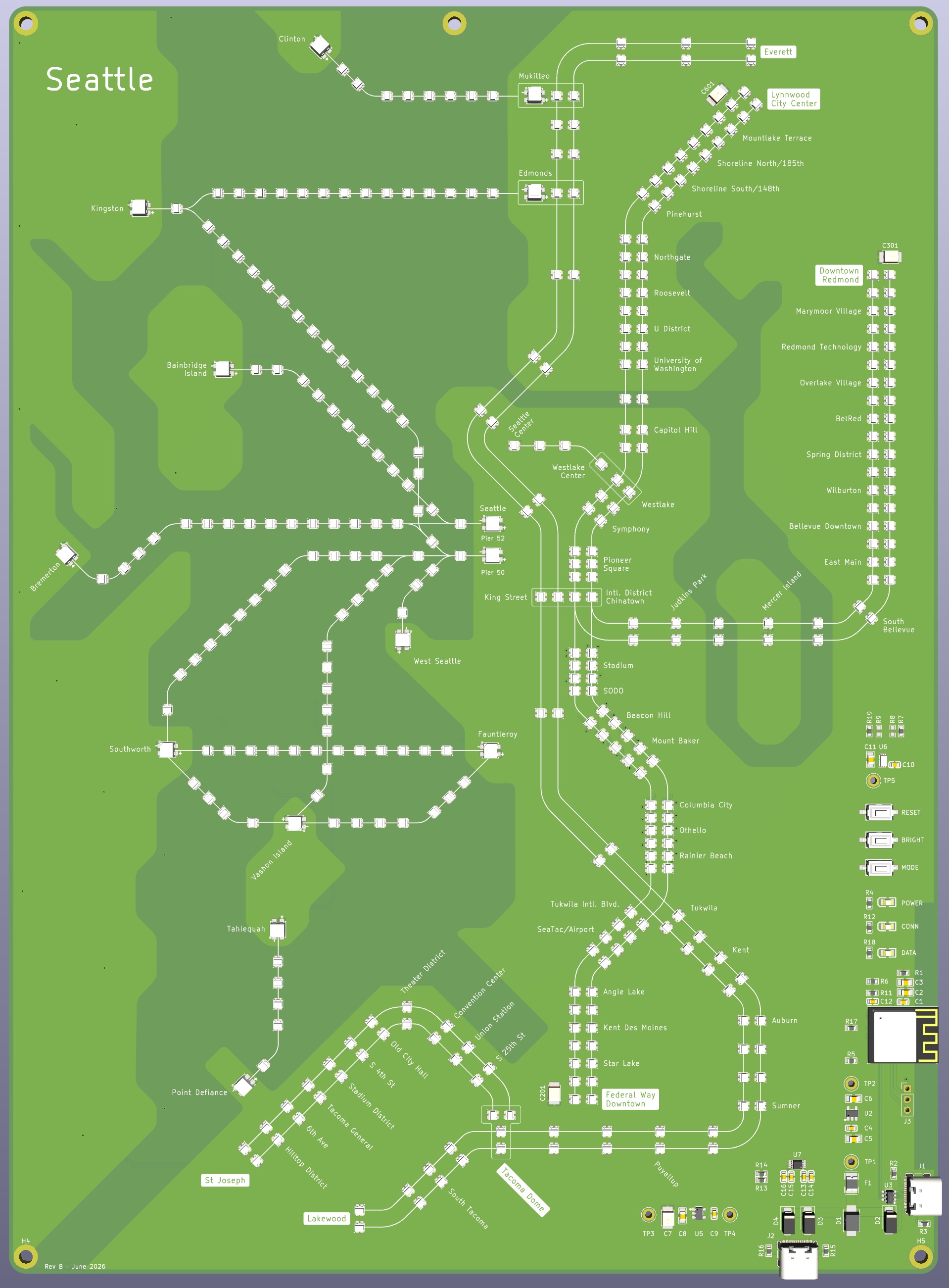

Full Seattle Transit Live Rev B board showing the regional transit map

$179+ tax

Includes U.S. ground shipping or Seattle-area delivery

Preorder Rev B
  • Estimated delivery in August/September 2026
  • Planned retail price: $219

Preorders are for the circuit board only. USB-C power adapter and display hardware are not included.

Updated Rev B design

Rail

  • Sound Transit Link 1, 2, and T lines
  • Sounder N and S lines
  • Seattle Monorail (schedule data only)

Ferries

  • 8 Washington State Ferries routes
  • Kitsap Fast Ferries
  • King County Water Taxi

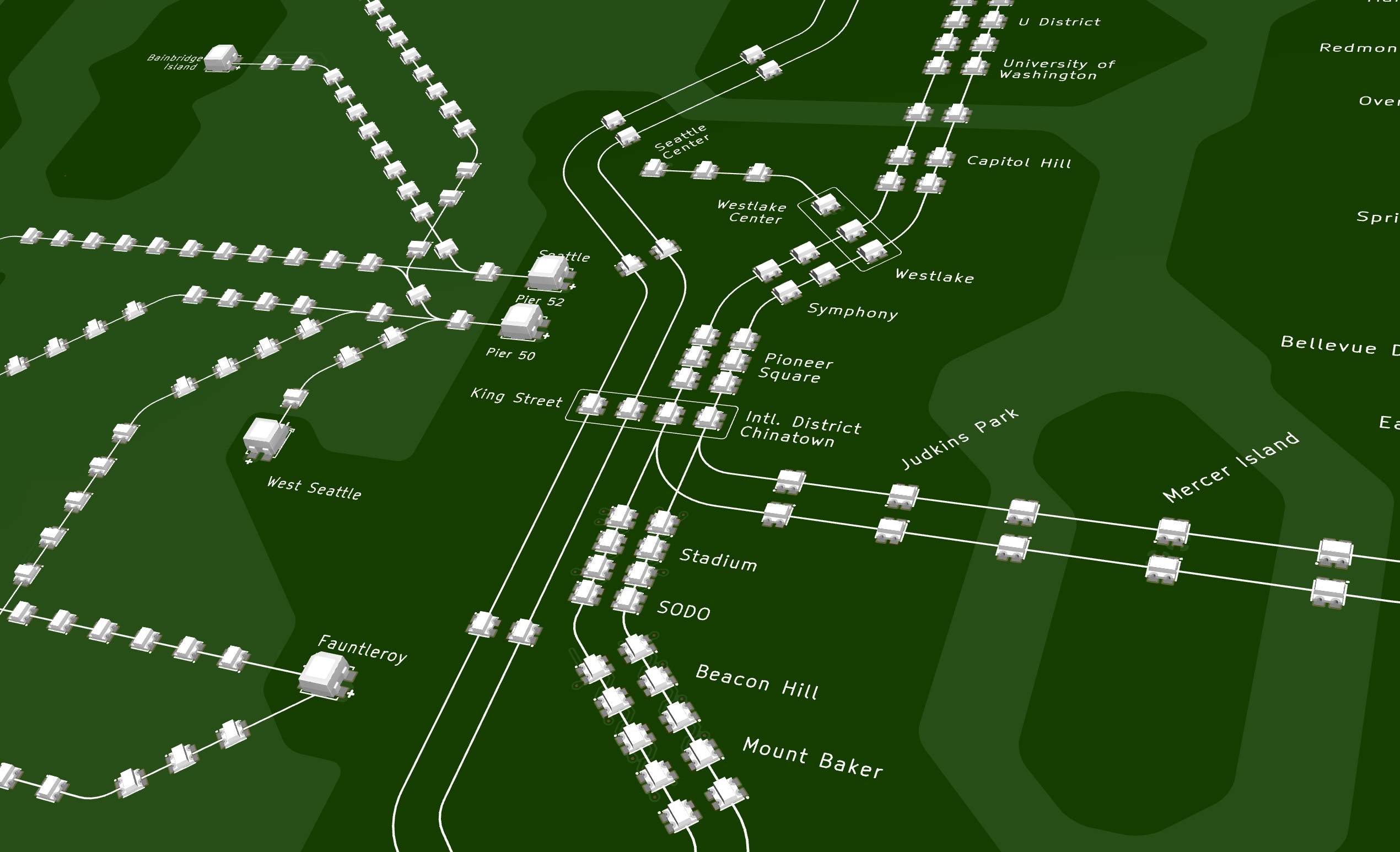

Oblique closeup of downtown Seattle, ferry terminals, Link, and Eastside routes on the Rev B board

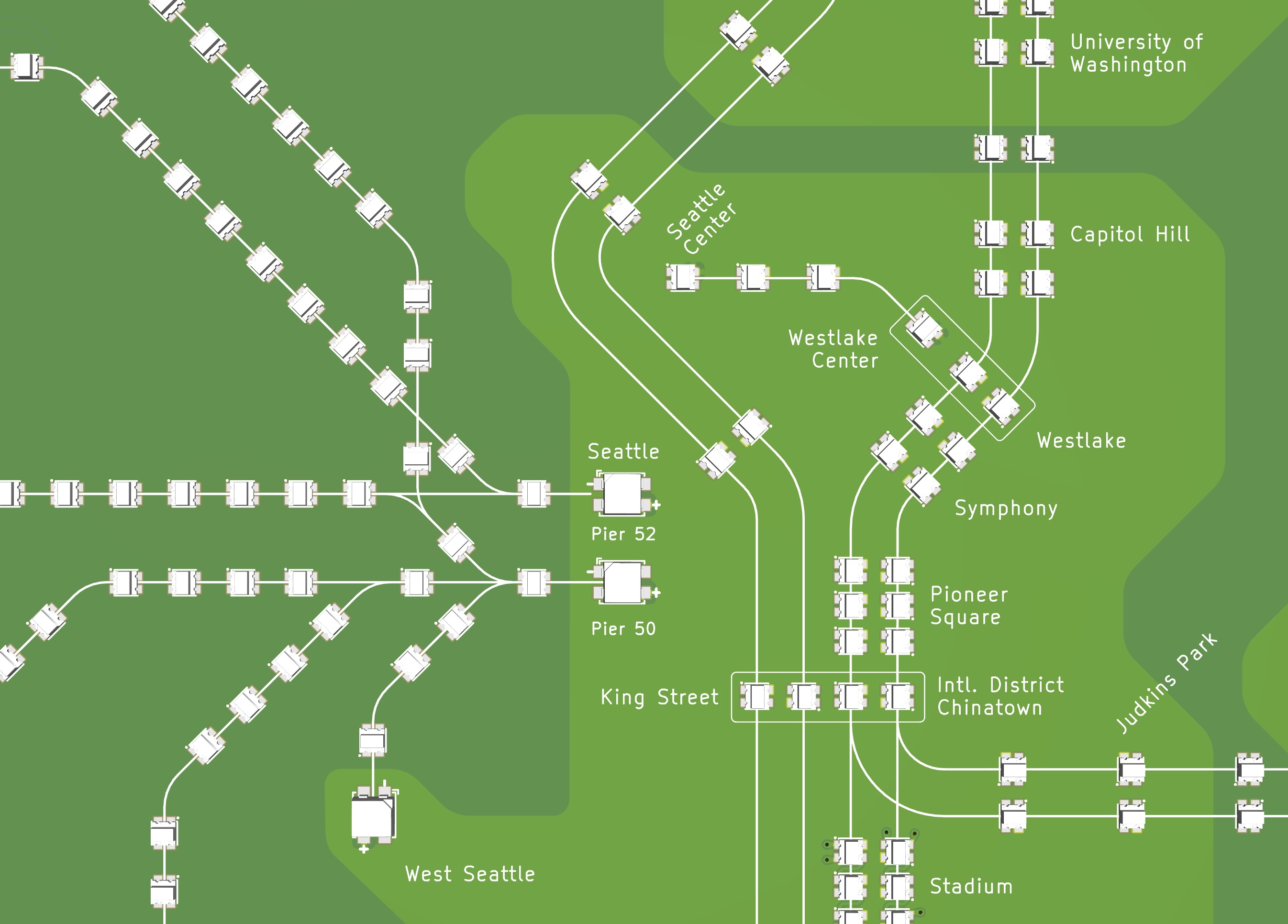

Closeup of downtown Seattle routes on the Rev B board

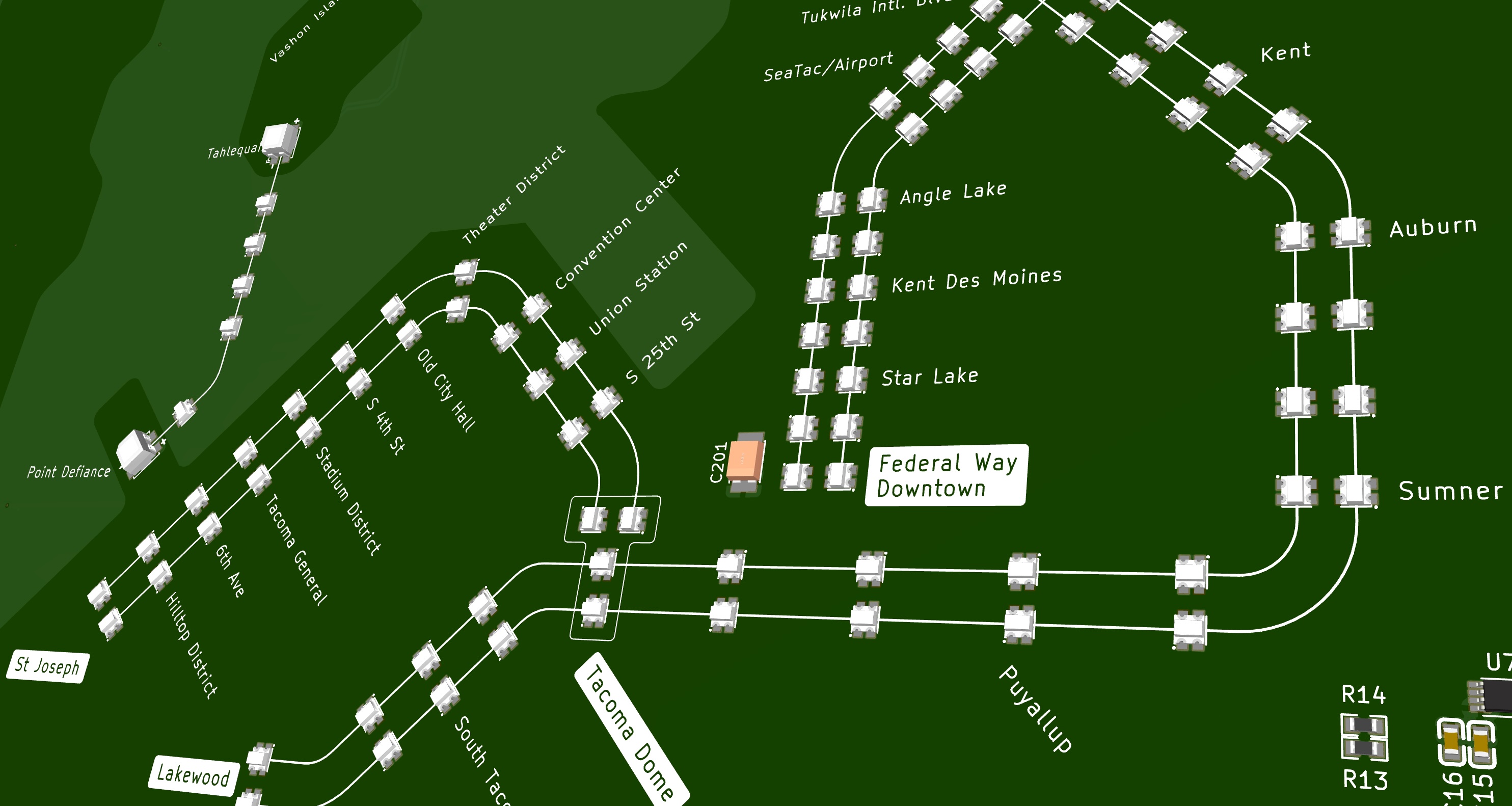

Oblique closeup of south sound rail and ferry routes on the Rev B board

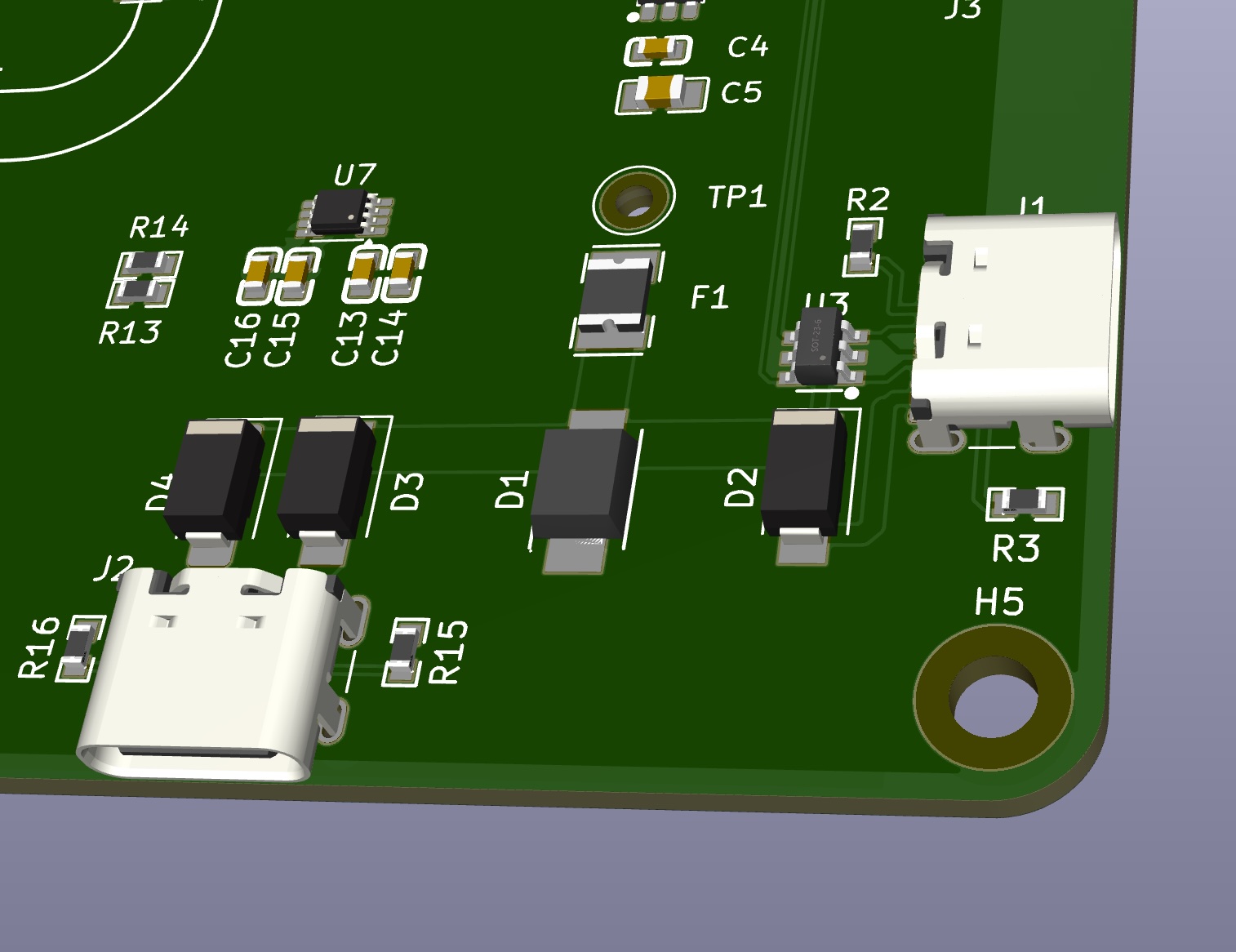

Closeup of the dual USB-C power input area on the Rev B board

Features

Live or schedule-based display

Connect the board to Wi-Fi for real-time vehicle positions, or use it offline to replay schedule data from memory. A fast replay mode shows a full service day in about four minutes.

Automatic or manual brightness

An onboard light sensor can adjust the display for the room, or use the brightness button for manual control.

Shelf or wall friendly

The board runs from USB-C power supplied by a standard 5V phone or laptop charger you provide. Power inputs on two edges support shelf and wall placement.

Open hardware

The schematic is open source, and the onboard ESP32-C3 Mini module can be flashed with custom firmware.

Designed in Seattle

Decorated with a custom transit diagram and a hand-drawn schematic map of the region's coast.

Note about live data

The board comes ready to connect to the Seattle Transit Live data service for real-time vehicle positions and firmware updates. Access to this optional service is included in the board price.

Live updates depend on public transit-agency feeds and the continued operation of the Seattle Transit Live service. If live data is interrupted, Spring 2026 schedule-based display will continue to work for the life of the board.
